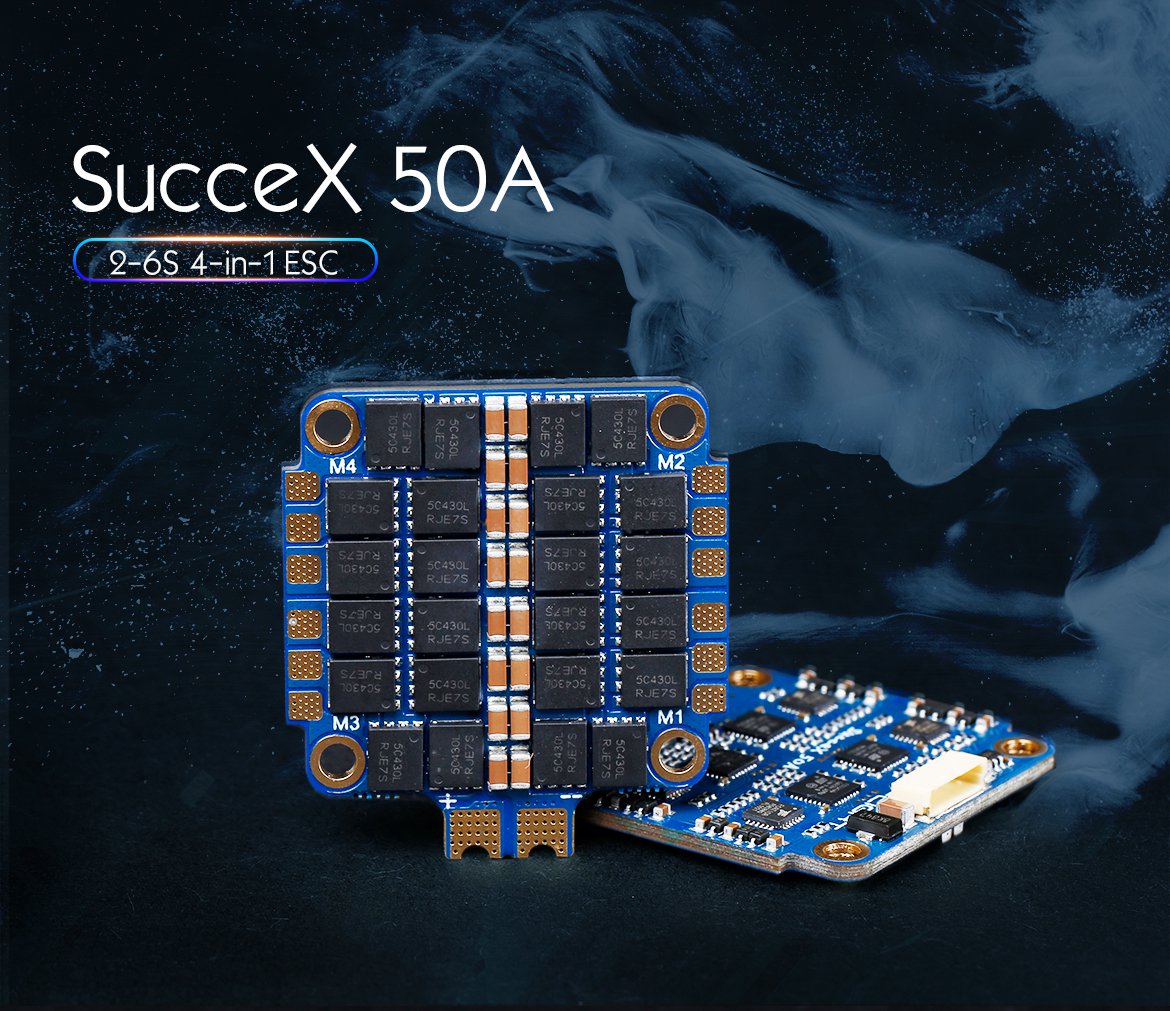

SucceX50A 2-6S Blheli_32 Dshot 1200 4in-1 ESC
[International shipping available]

Option Information
Product SucceX50A 2-6S Blheli_32 Dshot 1200 4in-1 ESC
Manufacturer Self-production
Country of Origin South Korea
Price $52.99
Product Code P00000UI
Domestic / International Shipping oversea delivery
Shipping (Charge) International Shipping Fee
Payment for Shipping Parcel Service
수량 수량증가수량감소

개인결제창을 통한 결제 시 네이버 마일리지 적립 및 사용이 가능합니다.

Product Option
Select item with details above

Minimum Order 1 or more / Maximum Order 0 or less

[Size Charts]
Product List
Product List Quantity Price
SucceX50A 2-6S Blheli_32 Dshot 1200 4in-1 ESC up down 52.99 (  0)
Total 0 (0item)

PRODUCT DESCRIPTION

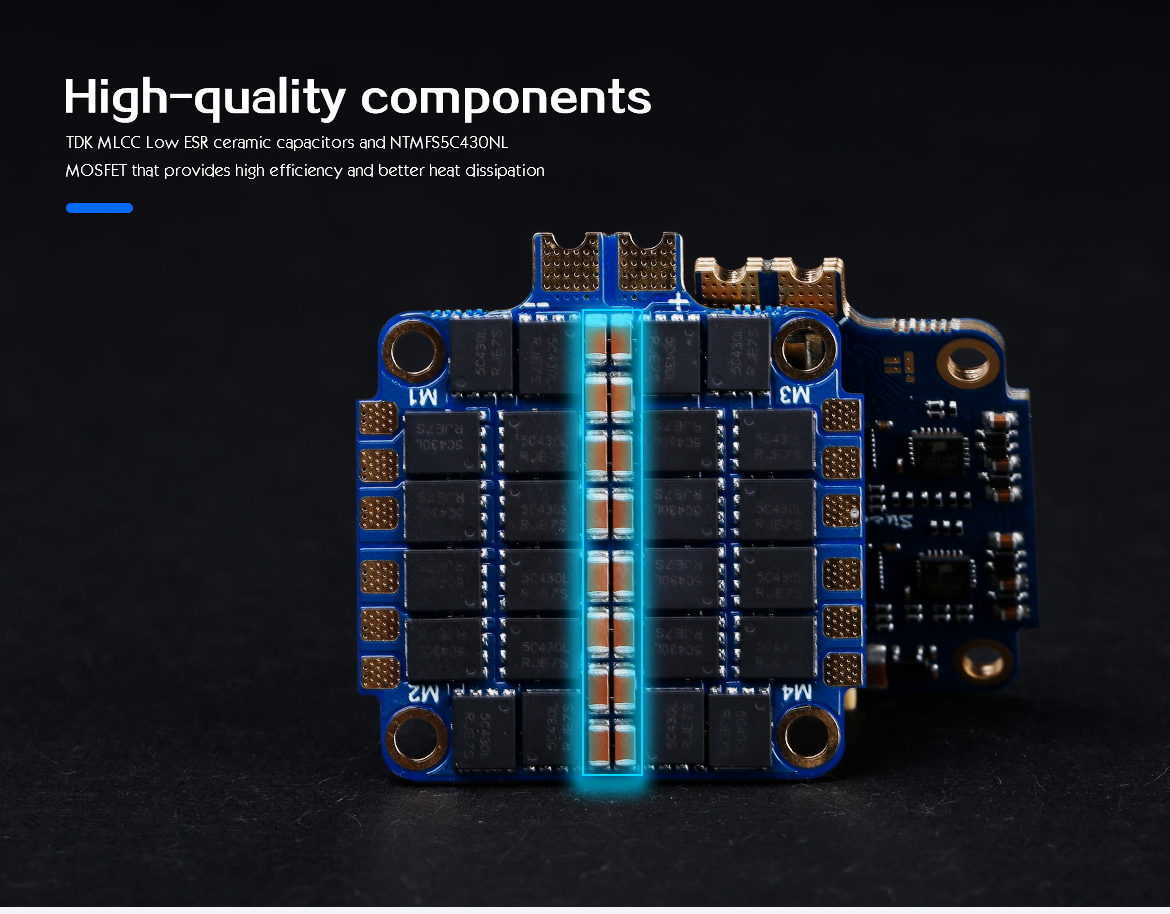

iFlight SucceX 50A 32bit BL Dshot1200 4in1 ESC was designed to give your motors smooth power with great stability and durability. Only high-quality components used and carefully arranged. 32bit 48mHz STM32F051 MCU, TDK MLCC Low ESR ceramic capacitors and NTMFS5C430NL MOSFET that provides high efficiency and better heat dissipation.
Standard 30.5*30.5 Φ4mm mounting holes; Vibration and shocks can be perfectly avoided by adding dampers; Rational layout design with extended solder pads ensures easy builds, fixes or adjustments;
Features:
- 8 layers double-sided PCB board;
- 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;
- 32bit FO51K86 MCU, 48mHz maximum clock speed;
- TDK MLCC Low ESR ceramic capacitors;
- Top grade NTMFS5C430NL MOSFET;
- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

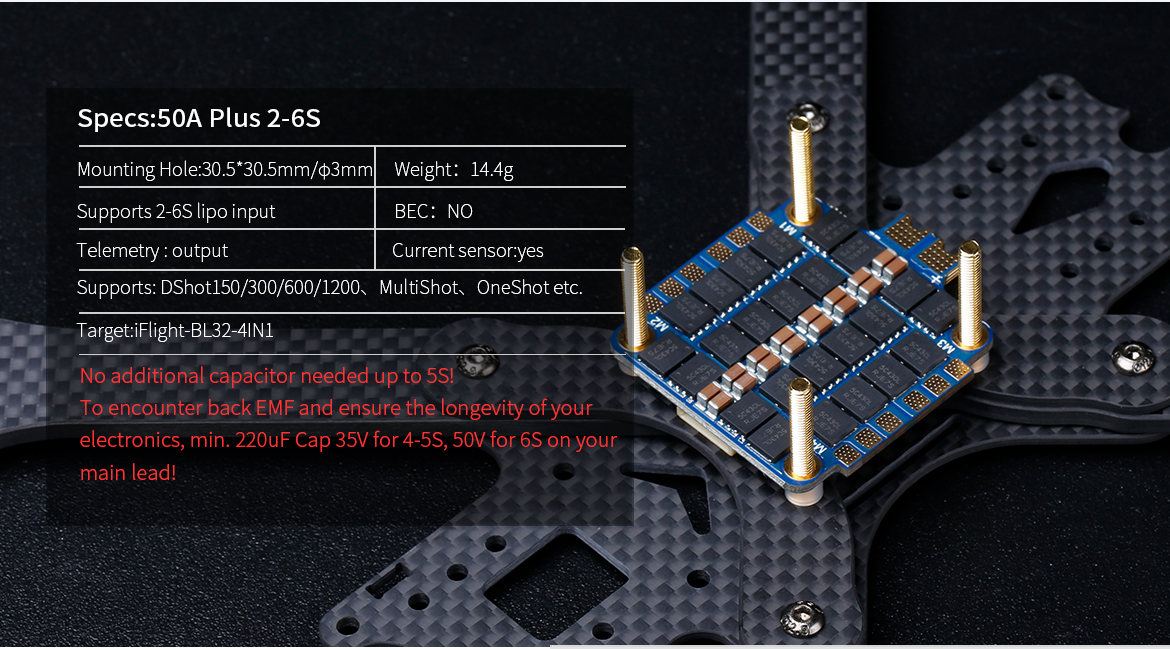

Specification:
- Dimension: 43*39mm

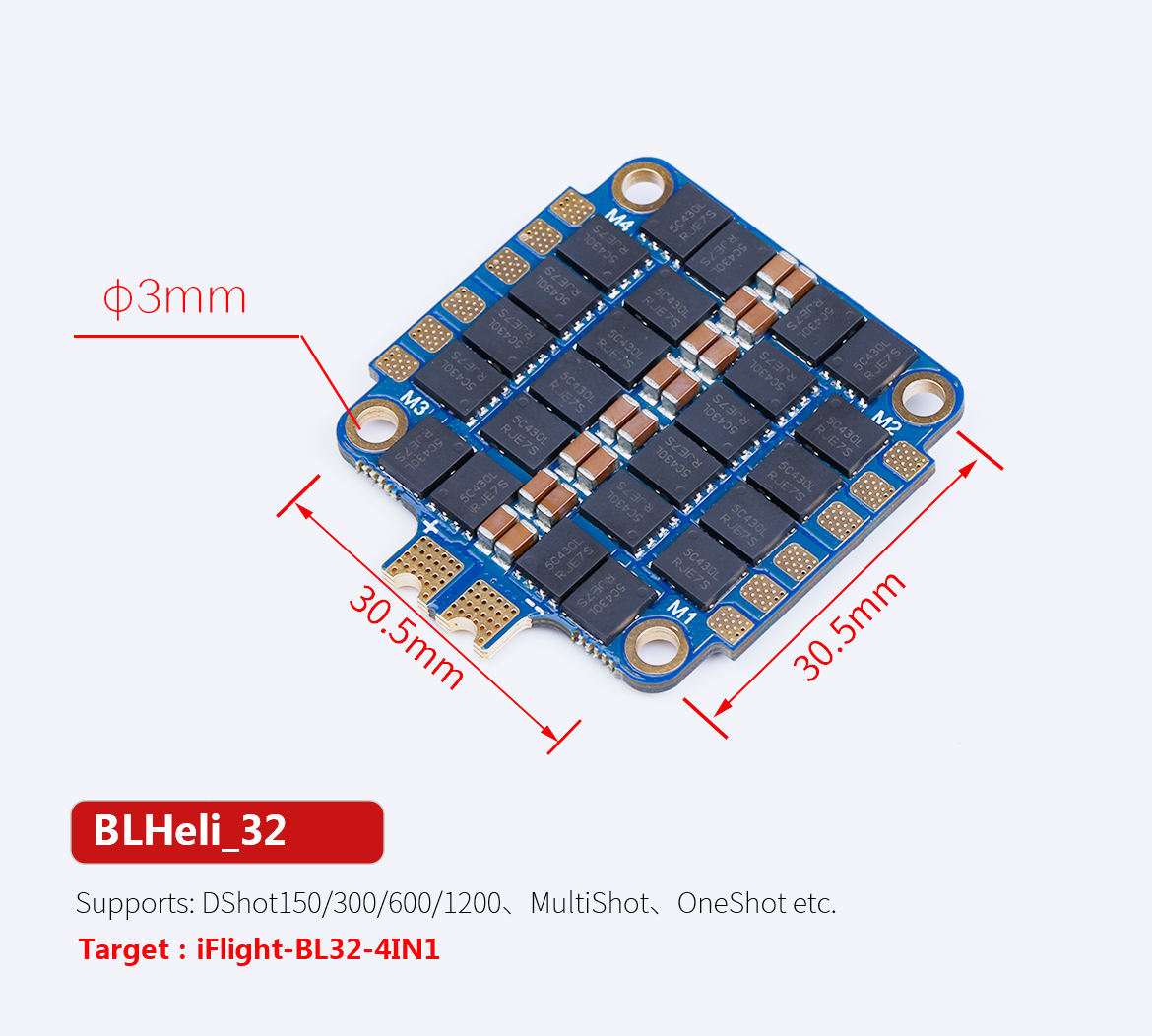

- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight:14.4g
- Supports 2-6S lipo input

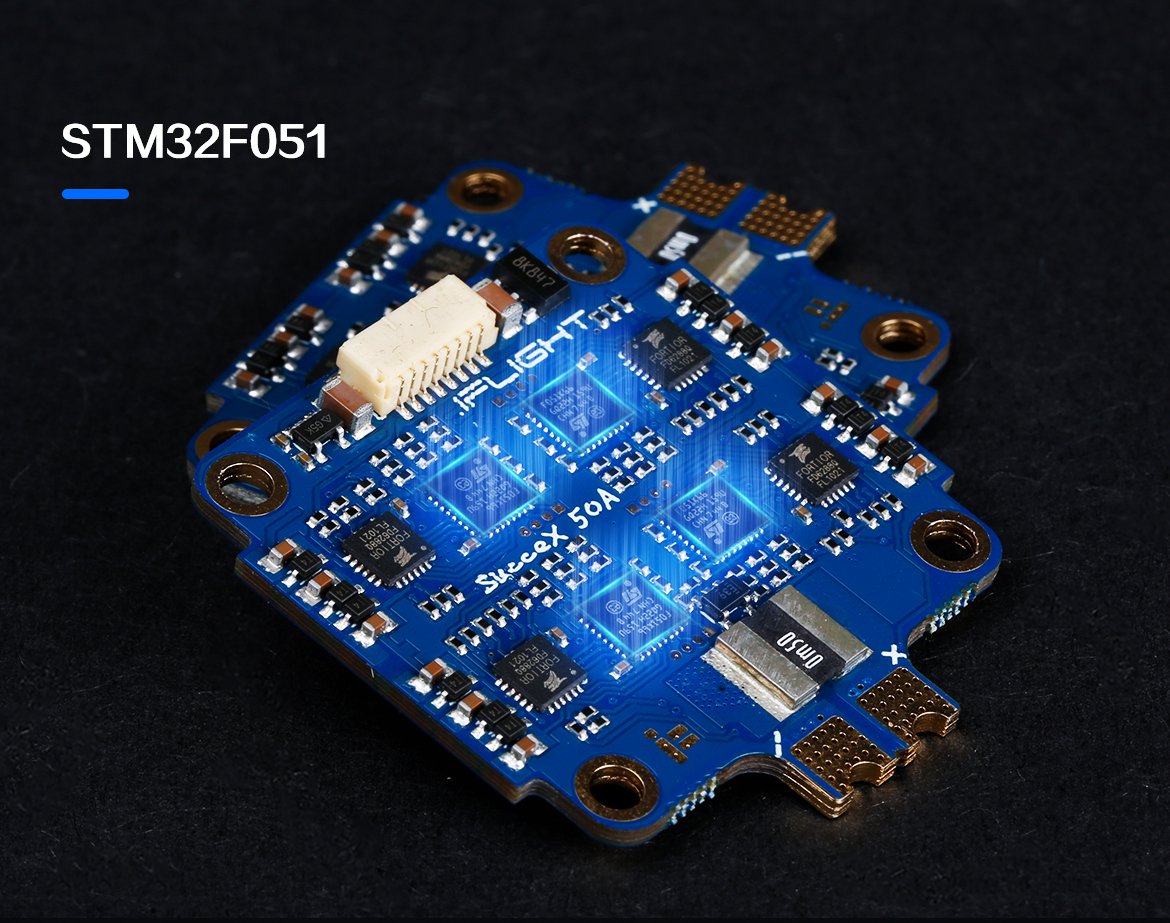

- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: Yes
- BEC: No
- Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
- Target: iFlight-BL32-4IN1
RECOMMENDATION:
- No additional capacitor needed up to 5S!
- To encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package Included:
- 4-in-1 ESC
- Power cables & ESC signal wires *1set
