iFLIGHT SucceX50A Slick v2 2-6S ESC(4pcs)
[International shipping available]

Option Information
Product iFLIGHT SucceX50A Slick v2 2-6S ESC(4pcs)
Manufacturer Self-production
Country of Origin South Korea
Price $76.99
Product Code P00000UJ
Domestic / International Shipping oversea delivery
Shipping (Charge) International Shipping Fee
Payment for Shipping Parcel Service
수량 수량증가수량감소

개인결제창을 통한 결제 시 네이버 마일리지 적립 및 사용이 가능합니다.

Product Option
Select item with details above

Minimum Order 1 or more / Maximum Order 0 or less

[Size Charts]
Product List
Product List Quantity Price
iFLIGHT SucceX50A Slick v2 2-6S ESC(4pcs) up down 76.99 (  0)
Total 0 (0item)

PRODUCT DESCRIPTION

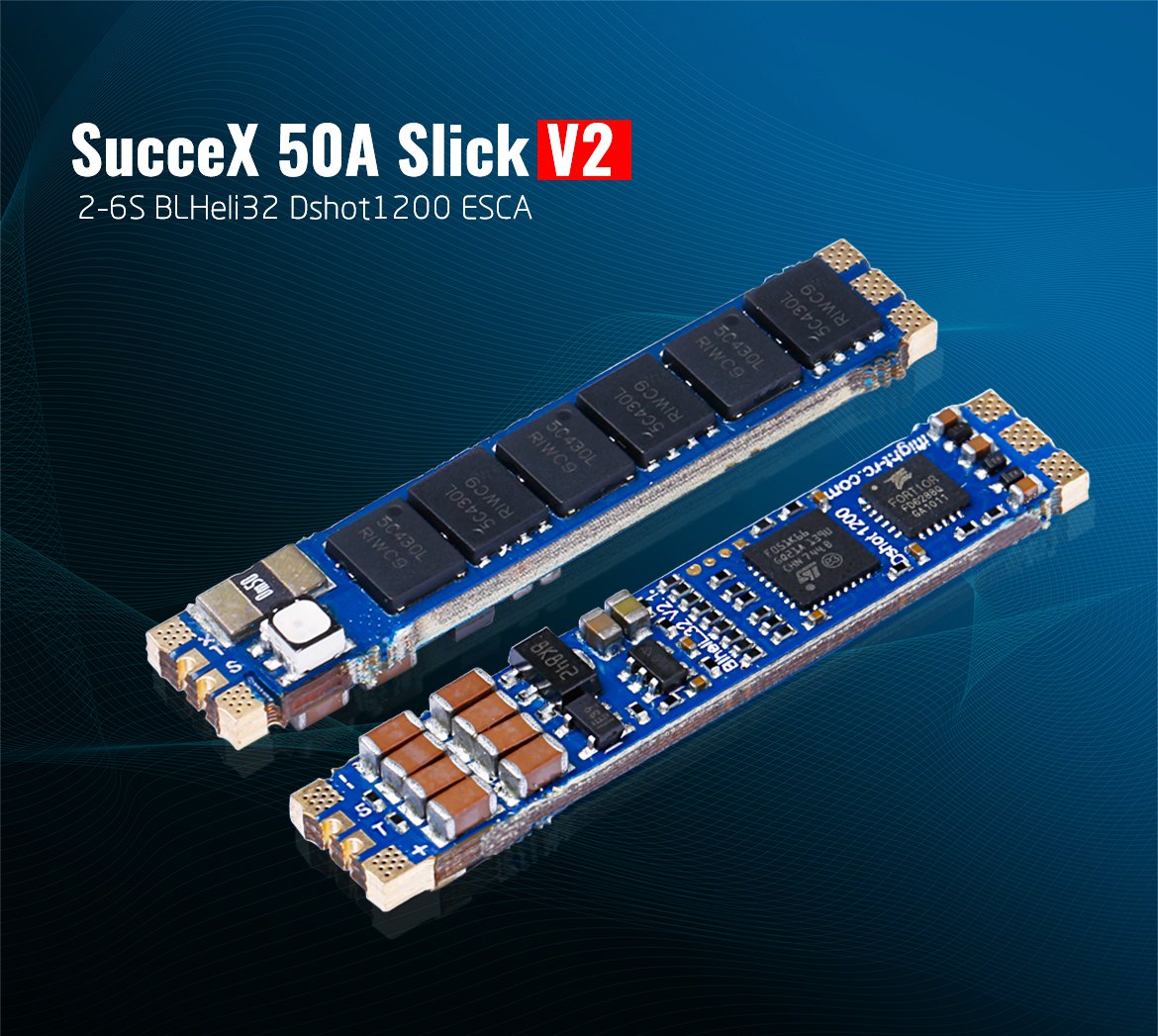

iFlight SucceX 50A V2 Slick ESC is specially designed for FPV racing frames with slim arms like Dove, Dove Lite, Archer. It comes with 48MHZ 32-bit STM32F051, to provide faster response speed and processing capacity. The STM32F051 is combined with the high-performance 3-in-1 driver, to lower the signal delay from throttle to the receiver, accelerate the motor responding speed and increase the control precision.iFlight SucceX 50A V2 Slick ESC provides the advantages of rapid flight and extraordinary flight experience!
Features:

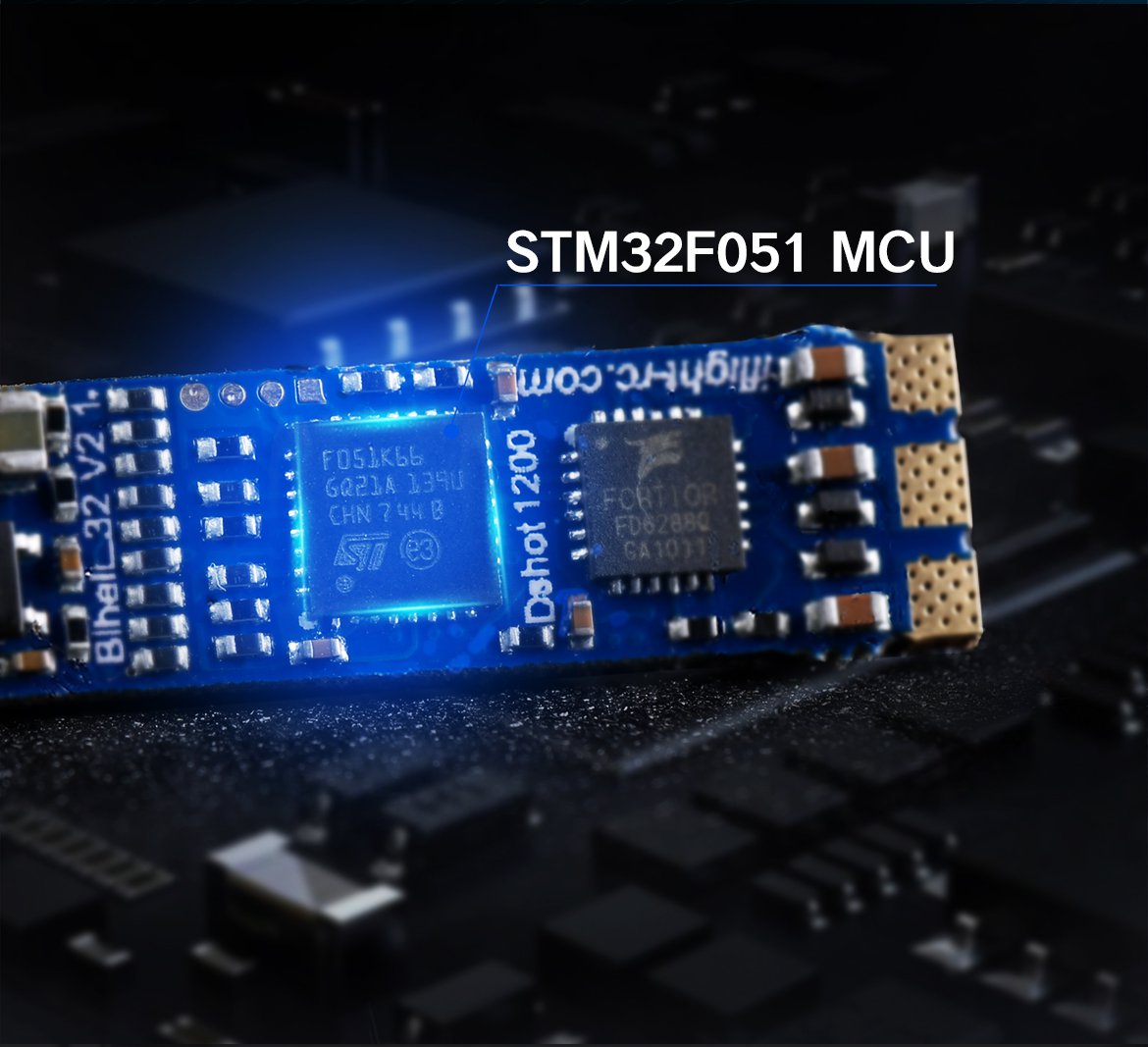

- 48MHZ running speed integrated 3 in 1 STM32F051;

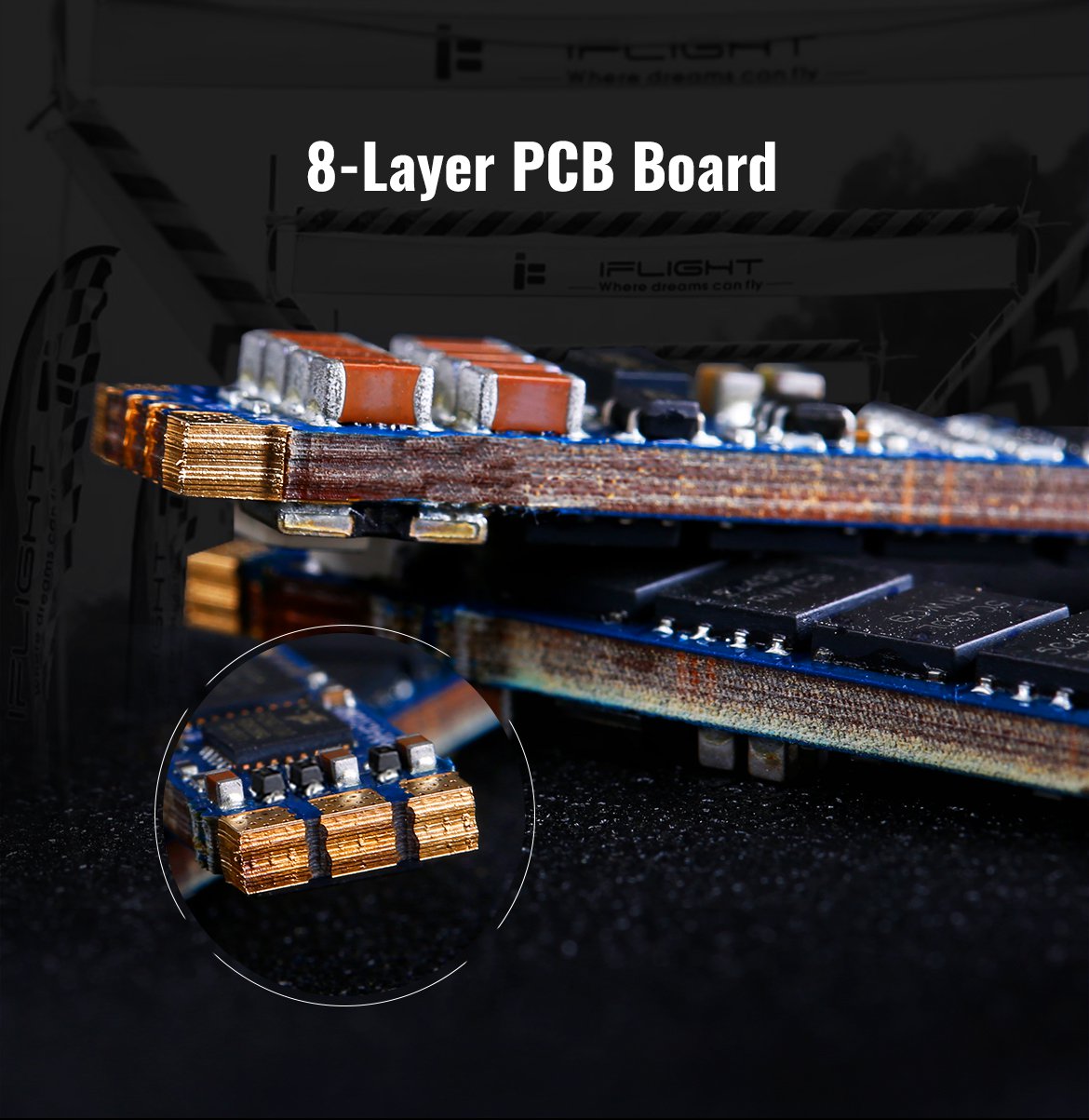

- Total 8-layer PCB board;
- High temperature and high current resistance;
- Support telemetry & current sensor ;

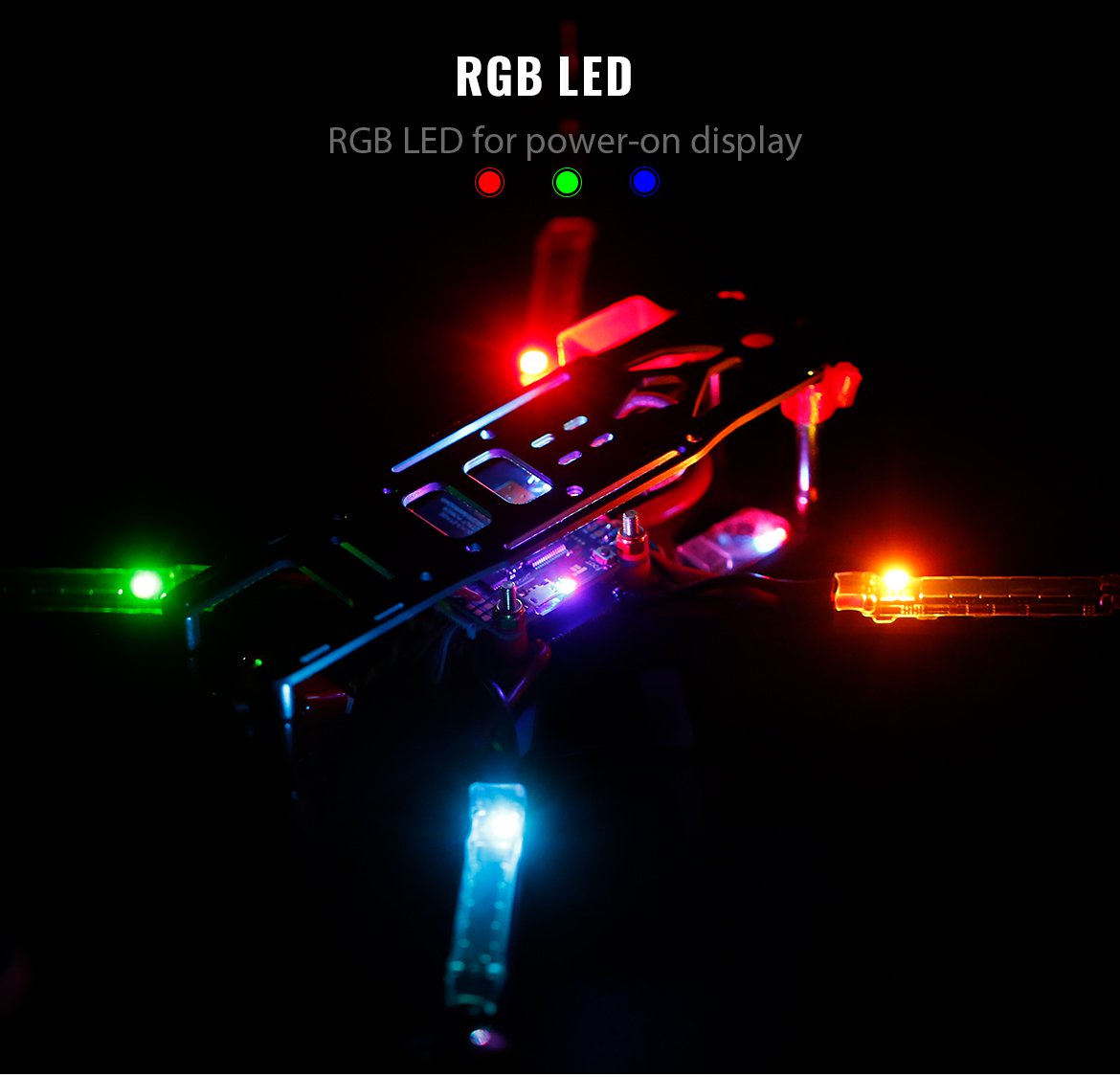

- RGB LED for power- on display;
- 45*8mm dimension, perfect for FPV racing frames w/ slim arms.
- countersinks and semicircle orifices enable each layer to be energized after power-on
- Support Dshot150/300/600/1200/Multishot/Oneshot;
- More aerodynamic, less prop thrust disturbance
Specifications:
- Input Voltage: 2-6S
- Weight: 3.9g without cables
- Dimension: 45*8mm
- Current sensor: support
- Telemetry: support
- RGB led lights display status
- BEC: NO
- Support: Dshot150/300/600/1200, MultiShot, OneShot;
- Target:iFlight-BL32-PRO
RECOMMENDATION:
- No additional capacitor needed up to 5S!
- But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Package Included:
- SucceX 50A  V2 Slick ESC *1pcs
- 35V 220uf capacitor * 1pcs
